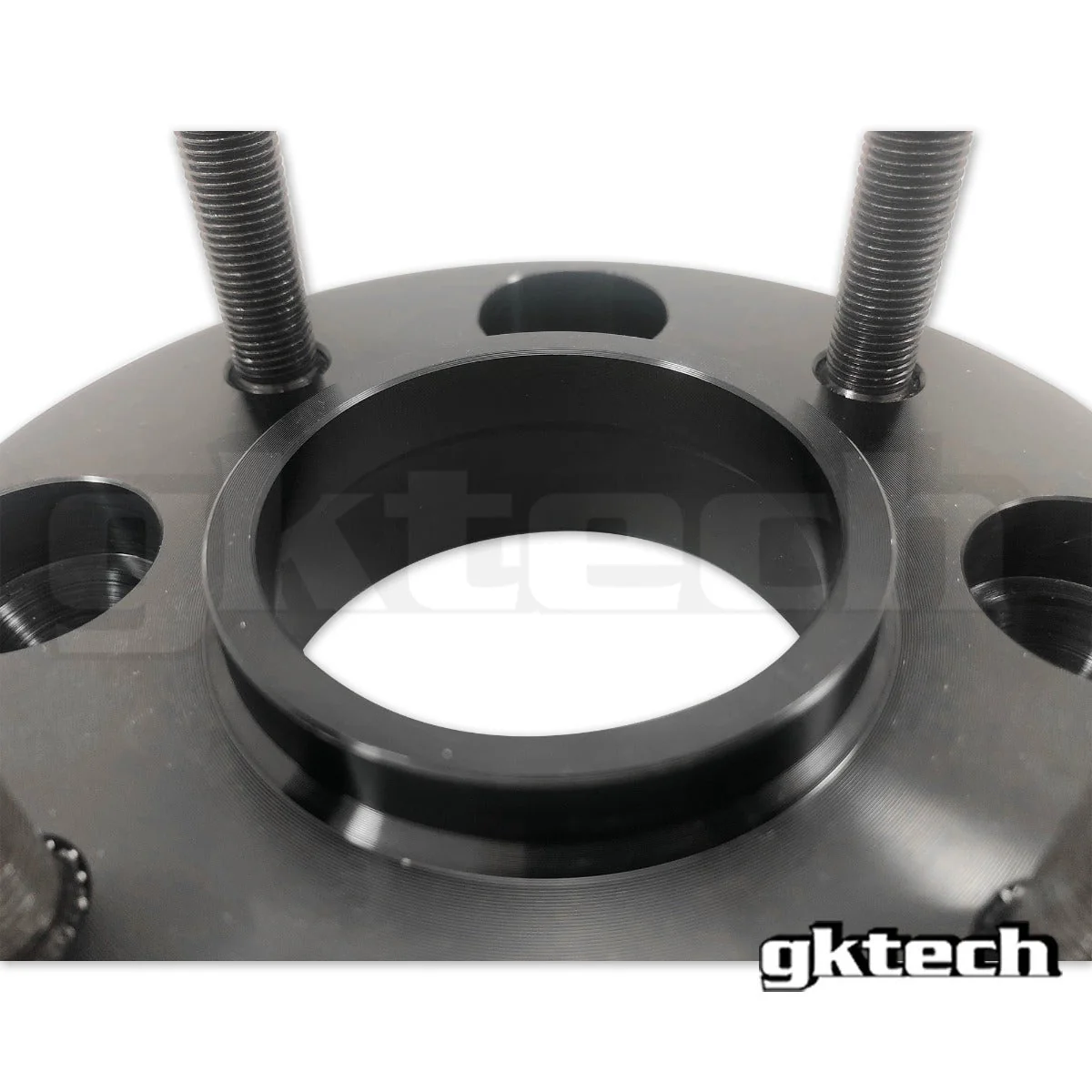

The GKTECH bolt on spacers are used to space the wheel, they not only allow for adjustment of the fitment of your wheels but can provide clearance to the suspension components and even provide more lock!

The wheel spacers are hub centric to suit Toyotas 60.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 extended studs, which you have the option of either standard length studs or extended wheel studs.

Our unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.

NOTE: Sold as a PAIR

NOTE#2: Spacers with a 73.00mm wheel bore will NOT fit with OEM Toyota wheels.

Sizes (width)	PCD	Centre bore	Wheel Bore	Spacer O.D	Standard stud length	Extended stud length	Stud thread
15mm	5x114.3	60.1mm	60.1mm	150mm	35mm	60mm	M12 x 1.5 thread
20mm	5x114.3	60.1mm	60.1mm	150mm	35mm	60mm	M12 x 1.5 thread
25mm	5x114.3	60.1mm	60.1mm	150mm	35mm	60mm	M12 x 1.5 thread
30mm	5x114.3	60.1mm	60.1mm	150mm	35mm	60mm	M12 x 1.5 thread
40mm	5x114.3	60.1mm	60.1mm	150mm	35mm	60mm	M12 x 1.5 thread
50mm	5x114.3	60.1mm	60.1mm	150mm	35mm	60mm	M12 x 1.5 thread
